DQS-5000-56ZSNew
48-port 25G SFP28, 8-port 40/100G QSFP28 L3 managed switch with 2 AC PSUs and 5 front-to-back fan modules
Description
The DQS-5000-56ZS is a high-performance 25G/100G switch platform designed specifically for micro data center environments. With 48 x 25G SFP28 ports and 8 x 100G QSFP28 uplink ports, it delivers powerful Layer 2 and Layer 3 capabilities in a compact 1RU form factor. Pre-loaded with ONIE and optimized for SONiC OS, this switch is ideal for disaggregated edge-scale cloud, enterprise micro-sites, and containerized workloads where agility, openness, and density are key. The system combines open software flexibility with carrier-class hardware resiliency, bridging the gap between traditional network performance and the evolving needs of modern micro infrastructures.
Compact and Powerful for Edge Deployments
The DQS-5000-56ZS delivers up to 2.0 Tbps (4.0 Tbps full duplex) of non-blocking switching capacity with 48 x 25 Gbps SFP28 and 8 x 100Gbps ports in a compact 1RU, 19-inch rack-mount design. Front-to-back airflow, 2 (1+1) hot-swappable redundant PSUs, and 5 (N+1) hot-swappable fans ensure high reliability and thermal efficiency — ideal for space- and power-constrained micro data centers.
SONiC OS-Ready with ONIE Pre-Installed
Pre-loaded with the Open Network Install Environment (ONIE), the switch supports quick deployment of open network operating systems such as SONiC OS. It enables a fully disaggregated, modular architecture with advanced features including BGP, EVPN, VXLAN, VRF, and MC-LAG — providing hyperscale scalability at the micro data center edge.
Open and Automatable Management
Compatible with Open Network Linux (ONL) and industry-standard CLI, the switch supports DevOps-friendly operations. Integration with automation frameworks and programmable interfaces simplifies network management, improves visibility, and enhances operational efficiency in micro data center environments.
General features
Interfaces
• 48 x 10/25GBase-X SFP28 ports
• 8 x 40/100GBase-X QSFP28 ports
• 1 x USB 2.0 port
• 1 x RJ-45 console port for CLI management
• 1 x 10/100/1000Base-T RJ-45 port for out-of-band IP management
LEDs
• PWR
• FAN
• SYS
• LOC
• Link/Activity/Speed (per port)
DRAM
• 8 GB
Flash Memory
• 16 GB
Standards
• IEEE 802.3ae 10GBase-X
• IEEE 802.3by 25GBase-X
• IEEE 802.3ba 40GBase-X
• IEEE 802.3ba 100GBase-X
Standards (for management port)
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
Switching Capacity
• 2.0 Tbps (4.0 Tbps full duplex)
Max. Forwarding Rate
• 2,380 Mpps
Packet Buffer Memory
• 24 MB
MAC Address Table
• Up to 128K
Software Features (SONiC OS)
Data Center Features
• Open network installation environment (ONIE)
• 802.1Qbb priority-based flow control (PFC)
• Multi-chassis link aggregation (MC-LAG)
• VXLAN
• EVPN
L2 Features
• MAC address table: Up to 128K entries
• 802.3ad link aggregation (LACP)
- Max. 2047 groups per device
- 8 ports pre-group
• Spanning tree protocol (STP)
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- BPDU filter
- Root guard
- Loop guard
- BPDU restriction
• Port mirroring, VLAN mirroring
- One-to-one, many-to-one
- Mirroring for Tx/Rx
- 7 mirror sessions
• Flow-based mirroring
- Ingress & egress mirroring
• RSPAN
• Jumbo frame: Up to 10K
• 802.3x flow control
• Loopback detection
• 4K VLANs
• VLAN trunking
L3 Features
• Loopback interfaces
- IPv4/IPv6 interfaces
- Up to 1K
• ARP
- Up to 192K ARP entries
- Up to 192K static ARP entries
• UDP helper
• ARP Proxy
- ARP proxy between different subnets
- Local ARP proxy
• IPv6 Neighbor Discovery (ND)
- Up to 192K ND entries
• Up to 192K static ND entries
L3 Routing
• Routing table
- IPv4: Up to 512K
- IPv6: Up to 256K
• L3 forwarding table
- IPv4: 256K
- IPv6: 128K
- 1 entry consumed by each IPv4 route
- 2 entries consumed by each IPv6 route
• Equal-cost multi-path route (ECMP)
- Max multi-path route: 12 K
- Max paths per multi-path route: 64
• IPv4/IPv6 default route
• Static route
- IPv4: Up to 512K
- IPv6: Up to 256K
• Null route
• Route preference
• Route redistribution
• Graceful restart (GR) for OSPF
• Graceful restart (GR) for BGP
• Bidirectional forwarding detection (BFD)
- For IPv4/IPv6 static route
- For RIP
- For OSPF v2/v3
- For RIPng
- For iBGP
• RIP v1/v2, RIPng
• OSPF
- OSPF v2/v3
- OSPF passive interface
- Stub/NSSA(v2) area
- Announcement on loopback interface
- Equal-Cost Multi-Path Route (ECMP)
- Text/MD5
• BGP
- BGP4/BGP4+
- Text/MD5 authentication
• IS-IS, IS-ISv6
L3 Multicast
• L3 multicast
- IPv4: Up to 512K
- IPv6: Up to 256K
• IGMP v2/v3
- Up to 4K static IGMP groups
Quality of Service (QoS)
• 802.1p
• Differentiated services code point (DSCP)
• Color priority queue mapping
• 8 hardware queues per port
• Queue handling
- Strict priority
- Weighted round robin (WRR)
- Strict + WRR
- Weighted fair queuing (WFQ)
- 802.1Qaz enhanced transmission selection (ETS)
• Congestion control
- Weighted random early detection (WRED)
• Bandwidth control
- Port-based, flow-based, queue-based
- Minimum granularity 1 kbps
- Ingress/egress bandwidth control
• Three color maker
- TrTCM: CIR/PIR minimum granularity 1 kbps
- SrTCM: CIR minimum granularity 1 kbps
- TrTCM and SrTCM support CBS/EBS/PBS
• Policy map
- Remark 802.1p priority
- Remark ToS/DSCP
- Rate limiting
Access Control List (ACL)
• Max. ACL entries:
- Max. ingress/egress ACL entries: 6K
- Max. number of access control lists: Up to 4K
- Max. ACL rule entries: 1K
• IP Access List based on:
- Source/destination IP address mask
- IP preference/ToS mask
- DSCP mask
- Protocol type mask
- TCP/UDP port number mask
- VLAN List
• IPv6 access list based on:
- Source/destination IPv6 address mask
- IP preference/ToS mask
- DSCP mask
- Protocol type mask
- TCP/UDP port number mask
- IPv6 traffic class mask
- IPv6 flow label mask
OAM
• Optical transceiver digital diagnostic monitoring (DDM)
Security
• SSH
- SSH v1/v1.5/2
- Supports IPv4/IPv6
- Configurable TCP port number
• Broadcast/multicast/unicast storm control
AAA
• RADIUS, TACACS+ authentication
• Authentication database failover
Management
• Command Line Interface
• SNMP
- SNMP v1/v2c/v3
- IPv4/IPv6
- Announce on loopback interface
• TFTP client
- Supports IPv4 TFTP server
• DHCP client
• DHCP auto configuration
- DHCP option 67
• DHCP auto image
• DHCP relay
- DHCPv4/DHCPv6
- Option 12/60/61/82/125
- User-defined TLV for option 18/37/82
- DHCP/DHCPv6 local relay
• Password recovery
• Password encryption
• MTU settings
• Time zone settings
• System log
- Number of severity levels: 7 levels
- Local syslog
- IPv4/IPv6 syslog server
- Announce on loopback interface
• Command logging
- Command history log with account information
• NTP
• LLDP-MED
• DHCP server
- IPv4/IPv6 address assignment
• DHCPv6 prefix delegation (PD)
• Flash file system
• Multiple images
• Multiple configurations
• Enable login banner
• Editable system prompt
• Zero-touch provisioning (ZTP)
• DNS client
- IPv6 address
• IPv4/IPv6 ping
• sFlow
• REST API
Physical Parameters
Dimensions (W x D x H)
• 440 x 470 x 44 mm
Weight
• 9.7 kg
Power Input
• 1+1 redundant power supply design, hot-swappable
• Input: 100 to 240 V AC, 50/60 Hz
Maximum Power Consumption
• 550 W
Heat Dissipation (Max.)
• 518.35 W (1769.71 BTU/hr)
Fans
• 5 (4 + 1 redundant), hot swappable
Acoustics
• 74 dB (high speed)
• 62 dB (low speed)
MTBF (hours)
• 205,000
Temperature
• Operating: 0 to 40 °C
• Storage: -40 to 70 °C
Humidity
• Operating: 5% to 95% non-condensing
• Storage: 5% to 95% non-condensing
Safety
• LVD
EMI/EMC
• CE Class A
• FCC Class A
Certificates
Order info
DQS-5000-56ZS 48-port 25G SFP28, 8-port 40/100G QSFP28 L3 managed switch with 2 AC PSUs and 5 front-to-back fan modules

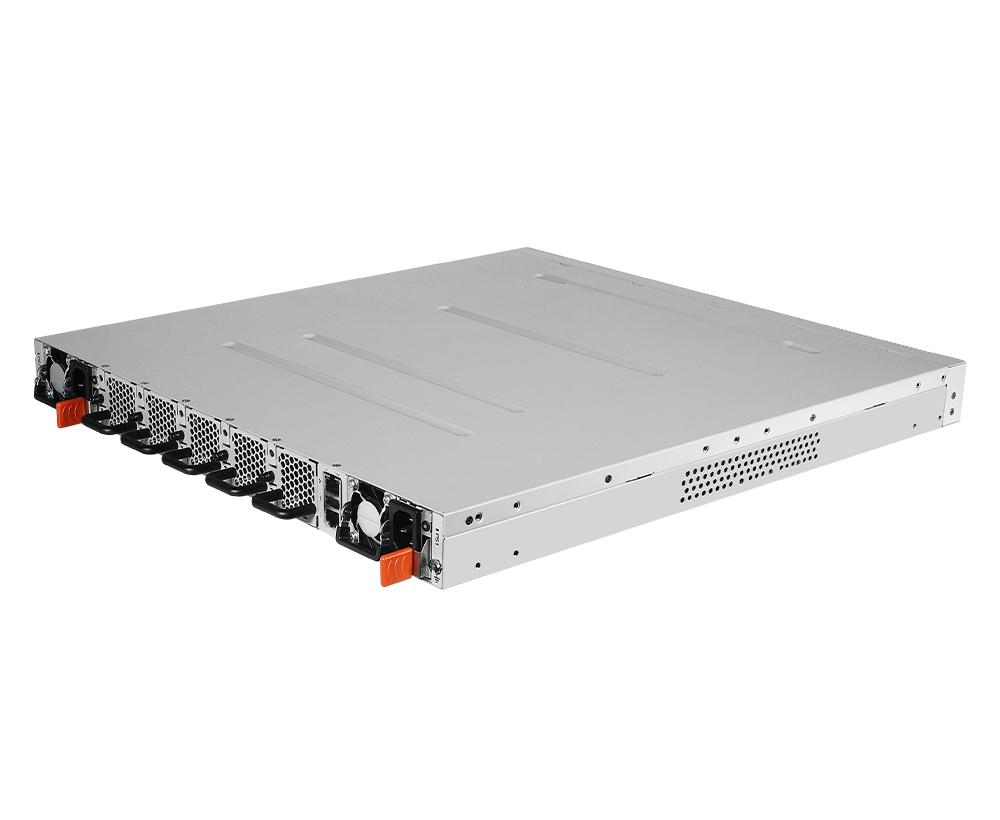

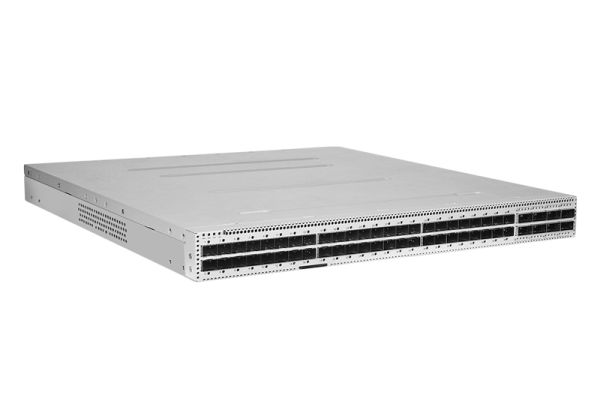

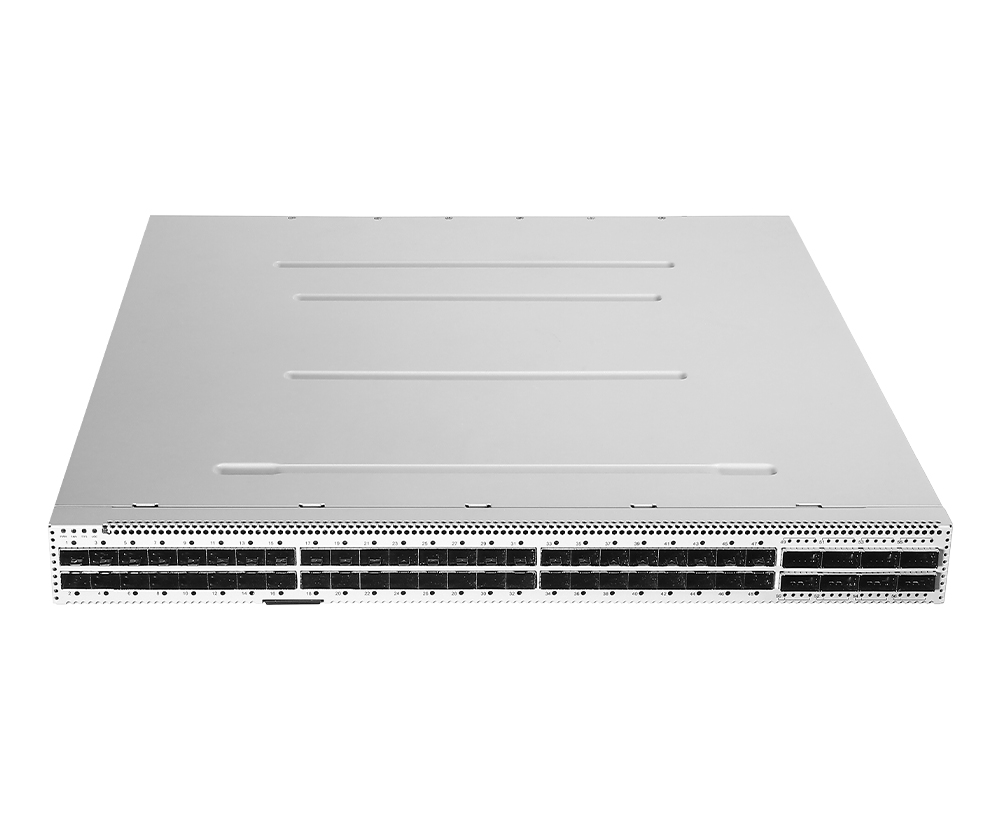

Pictures
